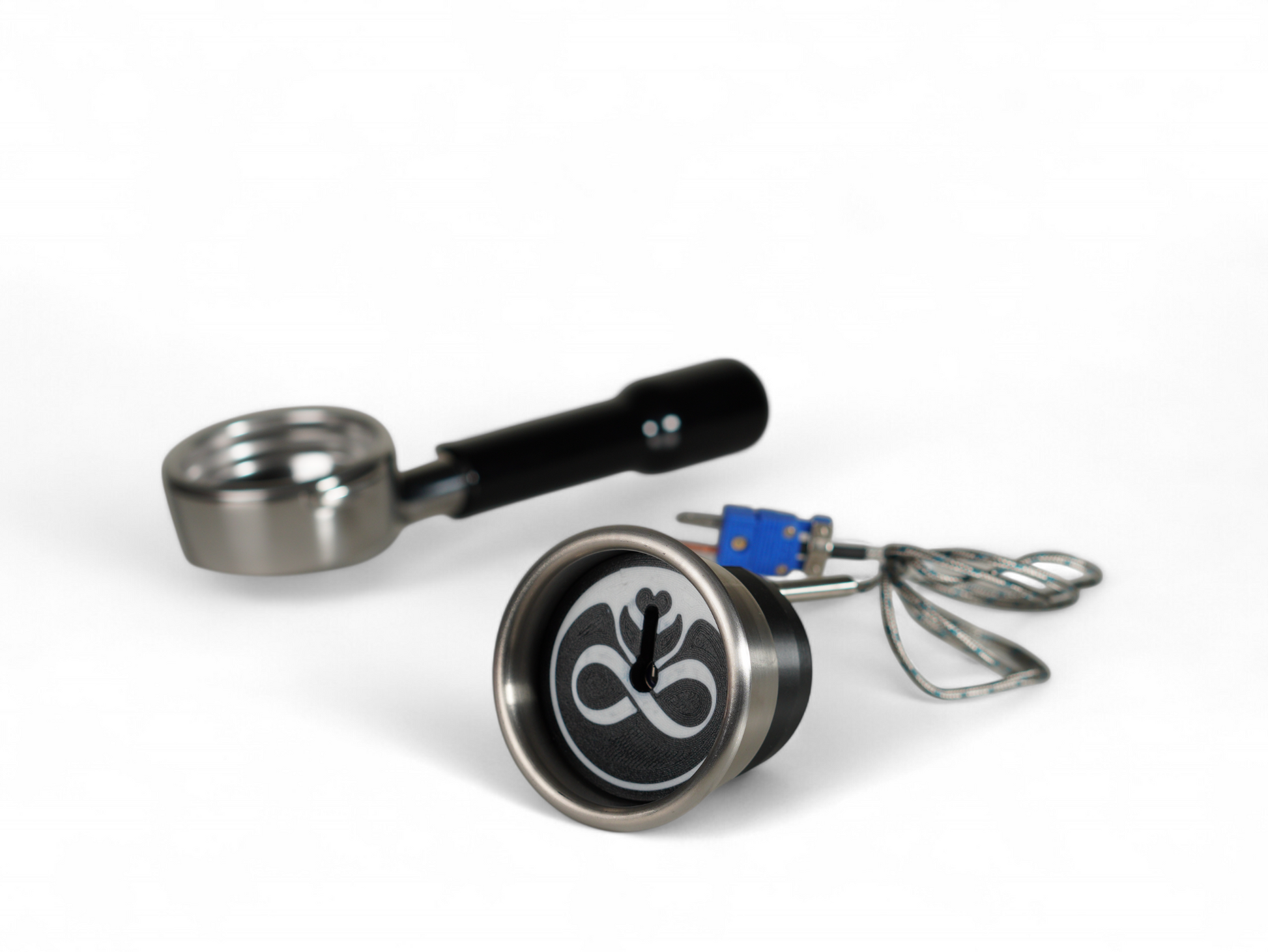

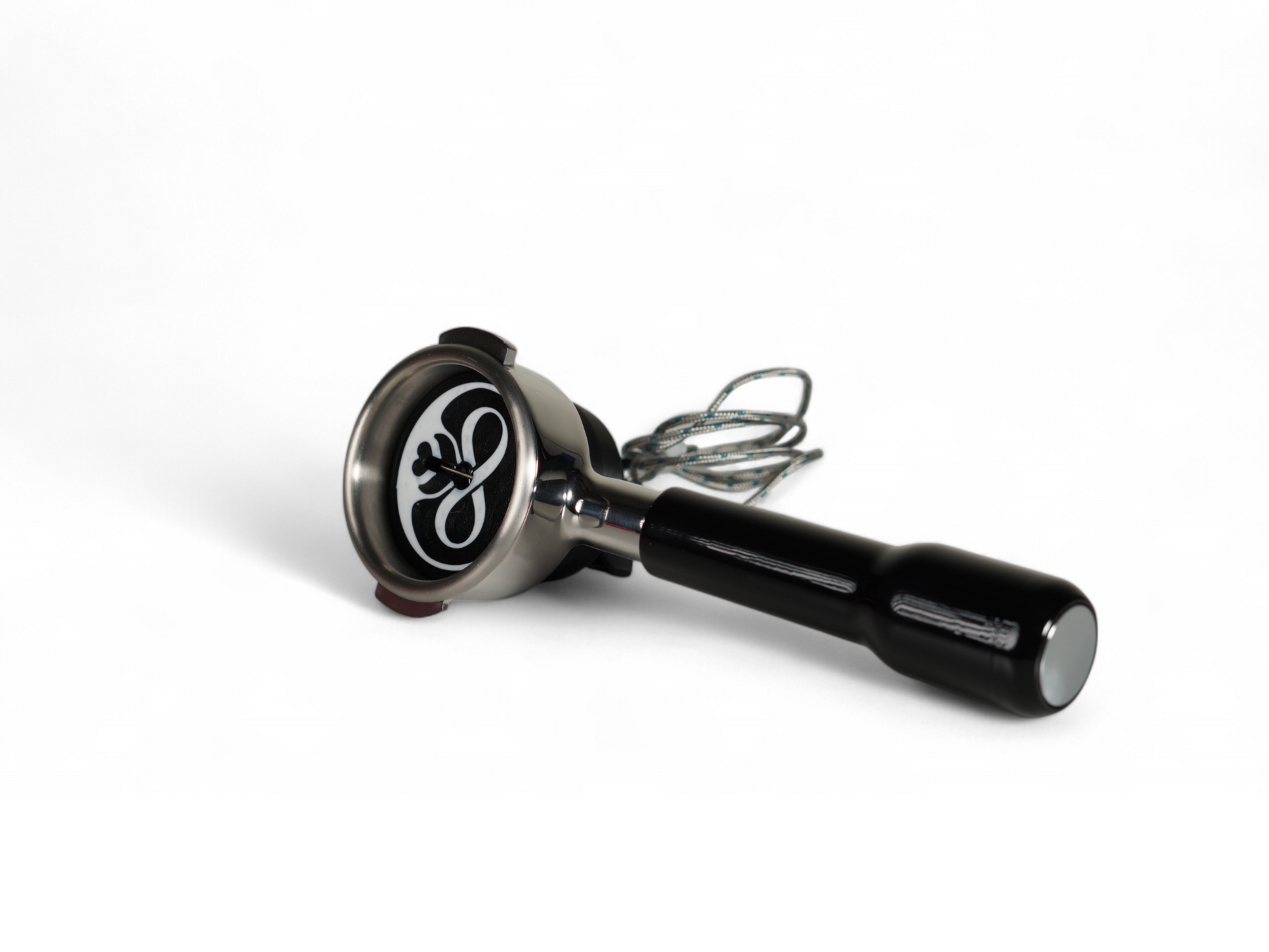

Brew Temperature Analyzer (BTA) for E61 Group Coffee Machines

Introducing our Brew Temperature Analyzer (BTA), a compact, easy-to-use measurement tool designed specifically for home baristas. It accurately tracks the temperature during the coffee extraction, giving you full control to perfect your espresso brewing temperature.

Built with a high-precision Type T thermocouple, it delivers real-time data with minimal setup, allowing you to determine the brewing temperature inside your coffee basket. The Brew Temperature Analyzer offers the accuracy and feedback typically reserved for commercial tools - now in an affordable, user-friendly format.

Product features

• Type T thermocouple with fast response time
• Plastic insert with minimal thermal conductivity
• Static flow restrictor to consistently reproduce the pressure drop of a coffee puck

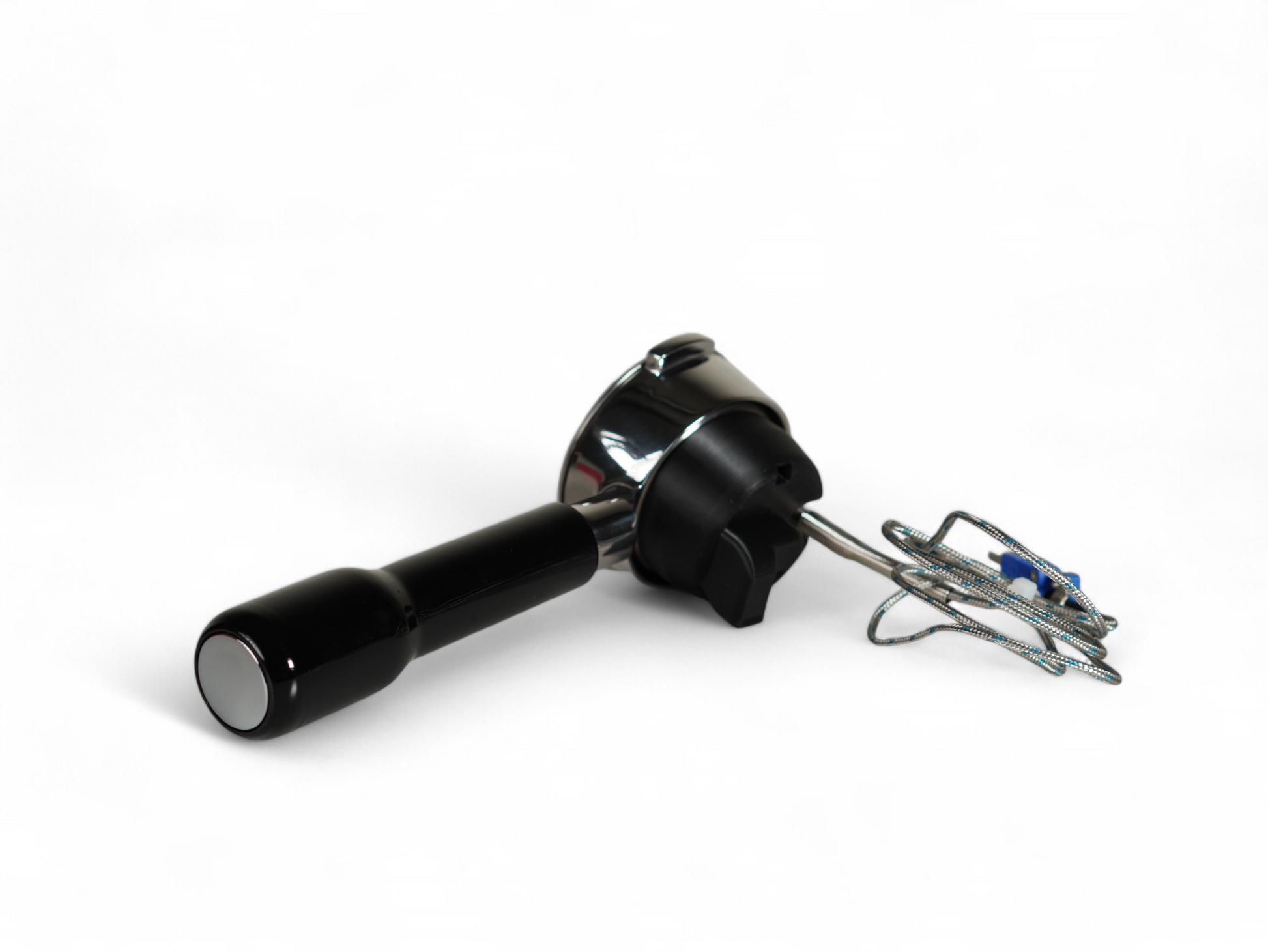

• Magnetically attachable single spout cap for user-friendly and safe testing
• Filter basket is compatible with E61 group head machines and similar

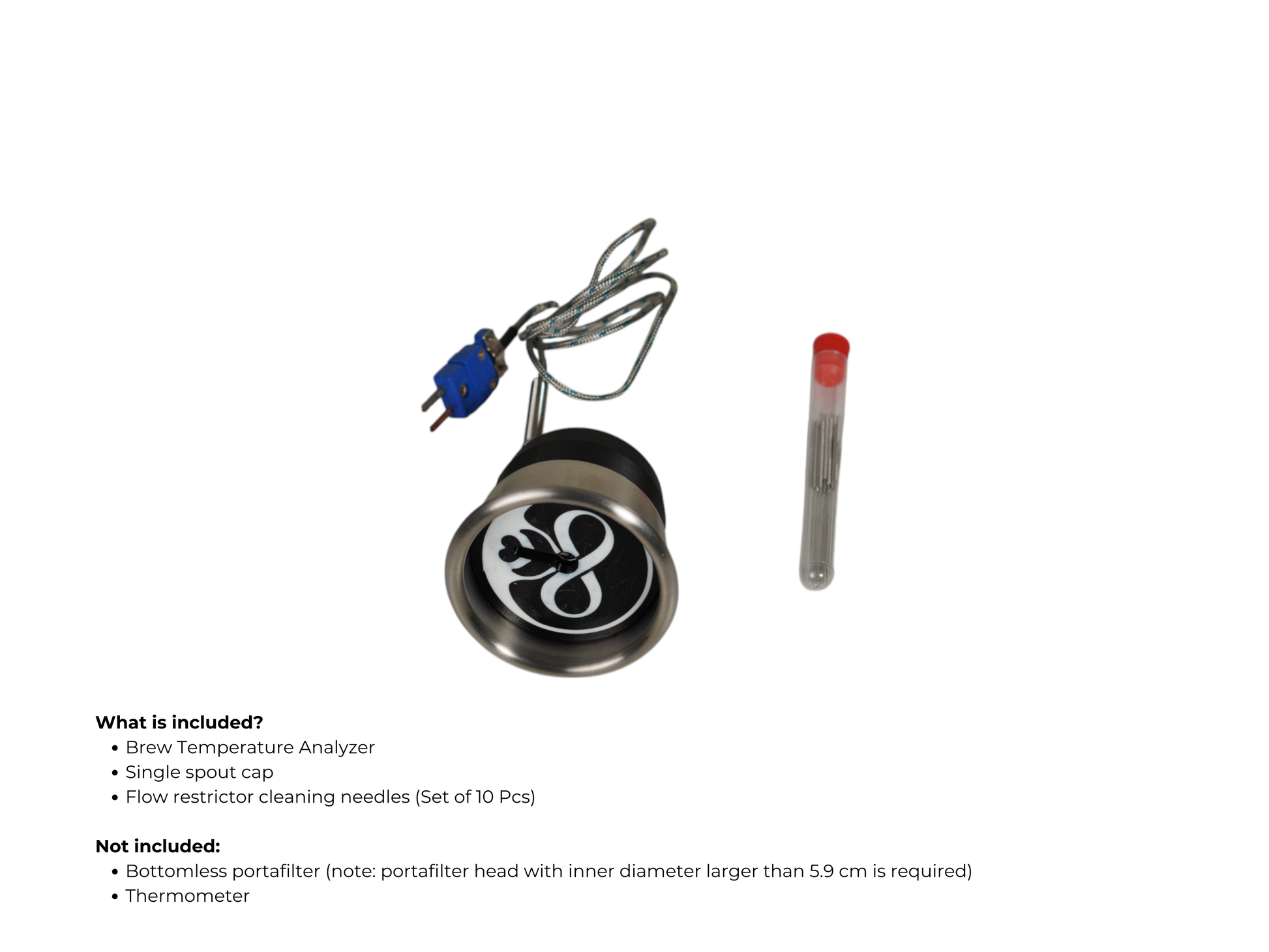

What is included?

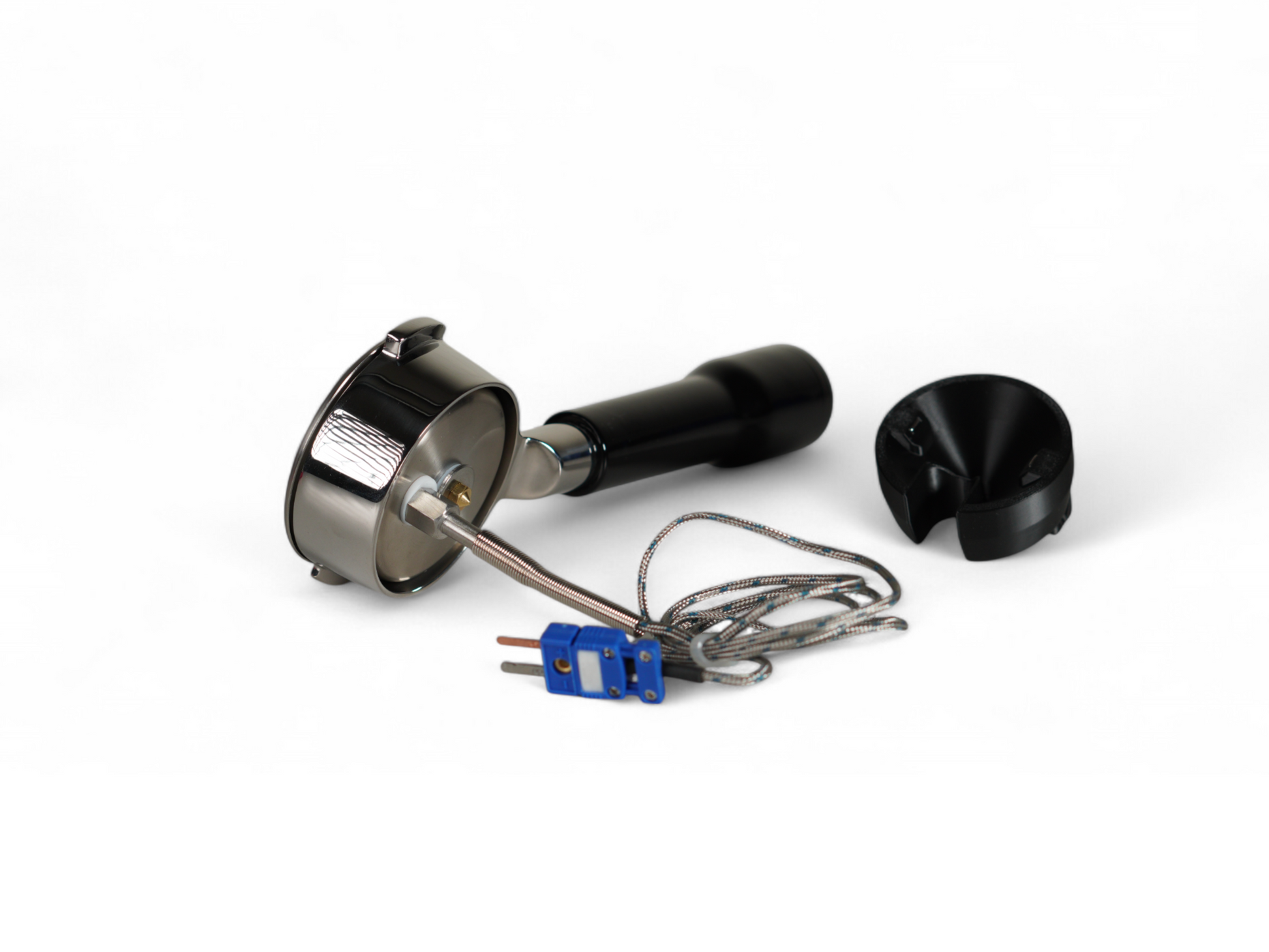

• Brew Temperature Analyzer
  • Temperature basket + sensor + plastic insert
• Single spout cap
• Flow restrictor cleaning needles (Set of 10 Pcs)

Optionally available products:

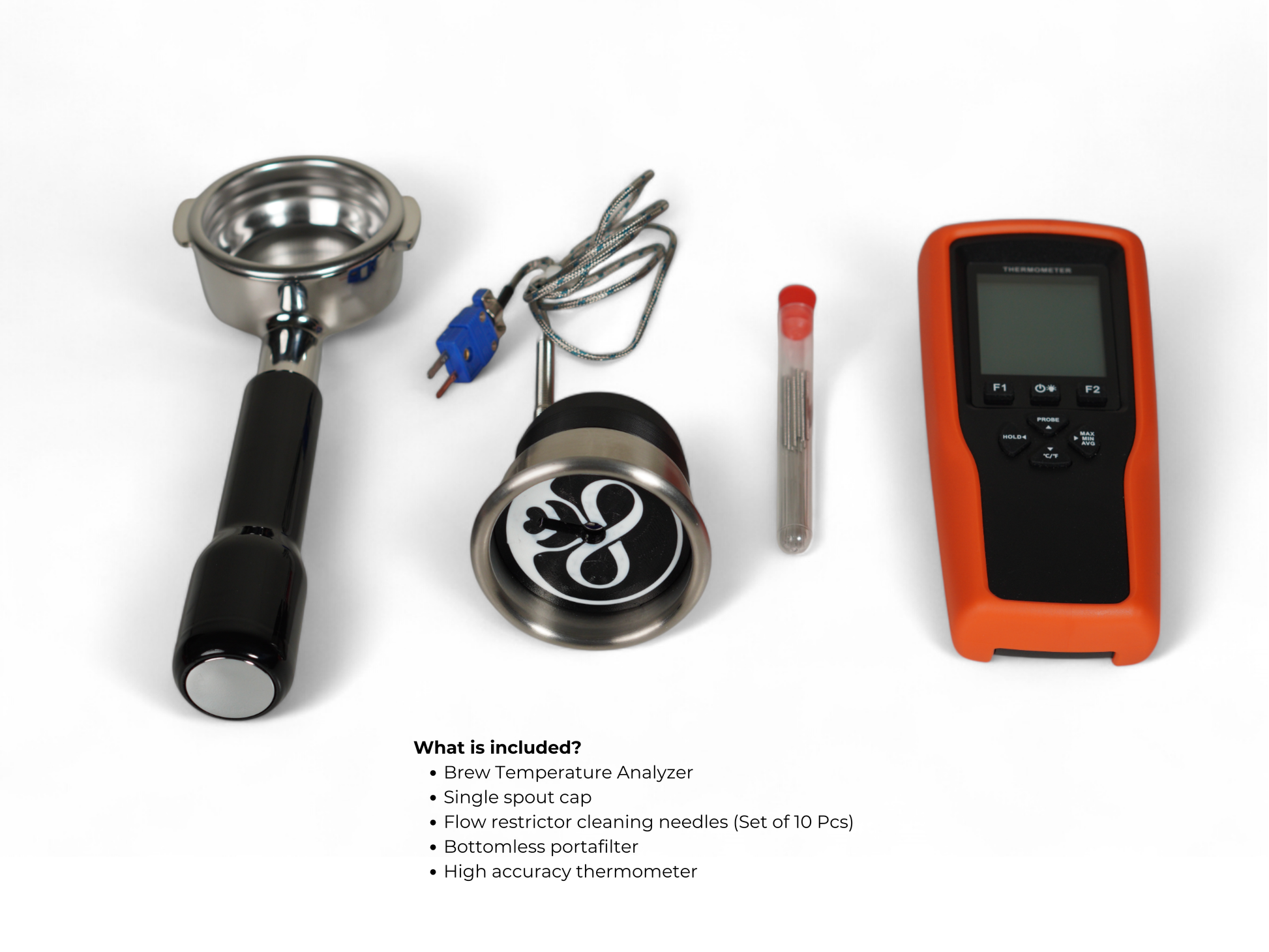

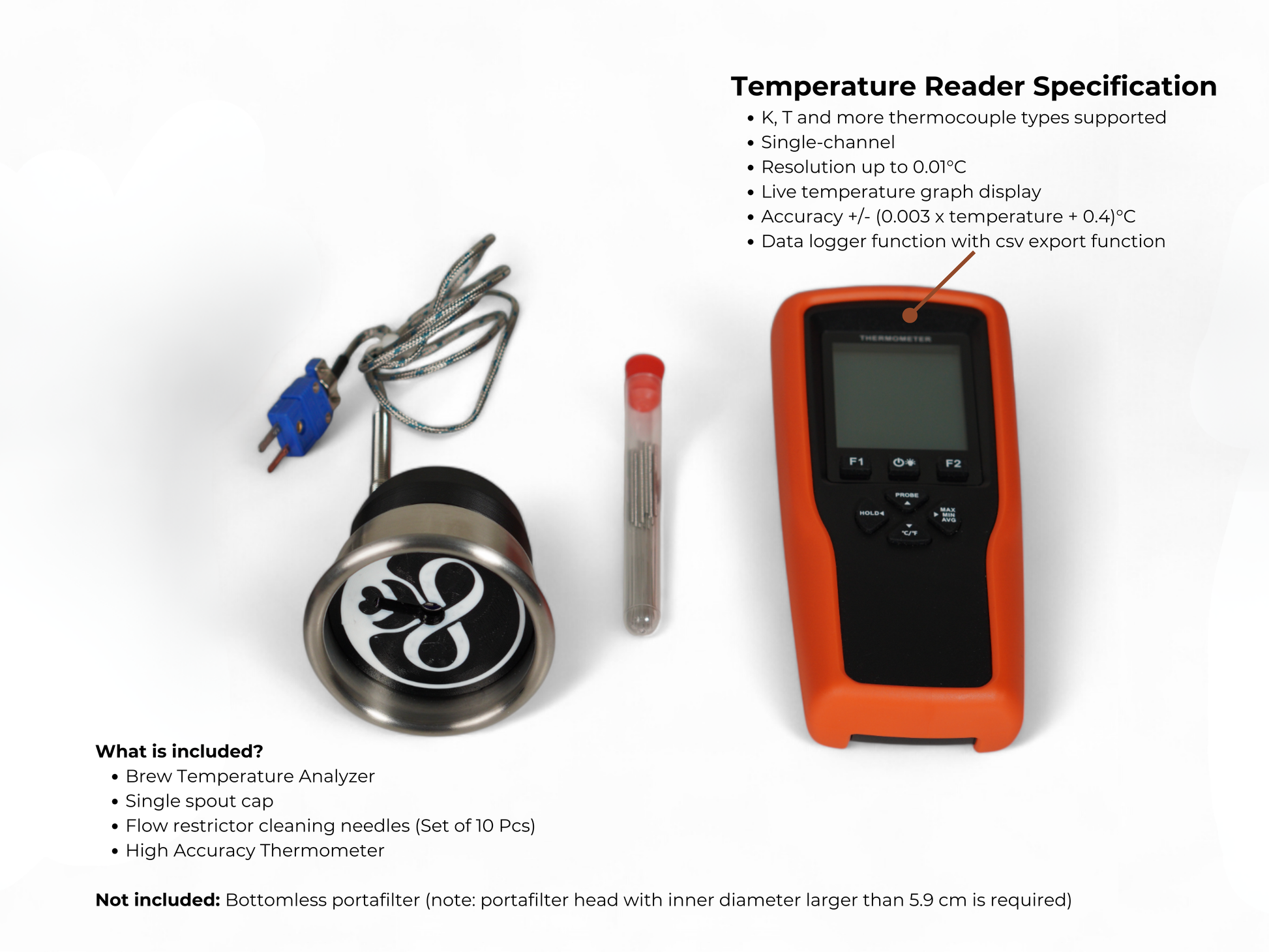

High Accuracy Thermometer

• K, T, and more thermocouple types supported (single-channel)
• Resolution up to 0.01°C
• Live temperature graph display
• Data logger function with CSV export function
• Accuracy +/- (0.003 x temperature + 0.4)°C
• Power supply: 3 x AAA battery (not included in shipment)

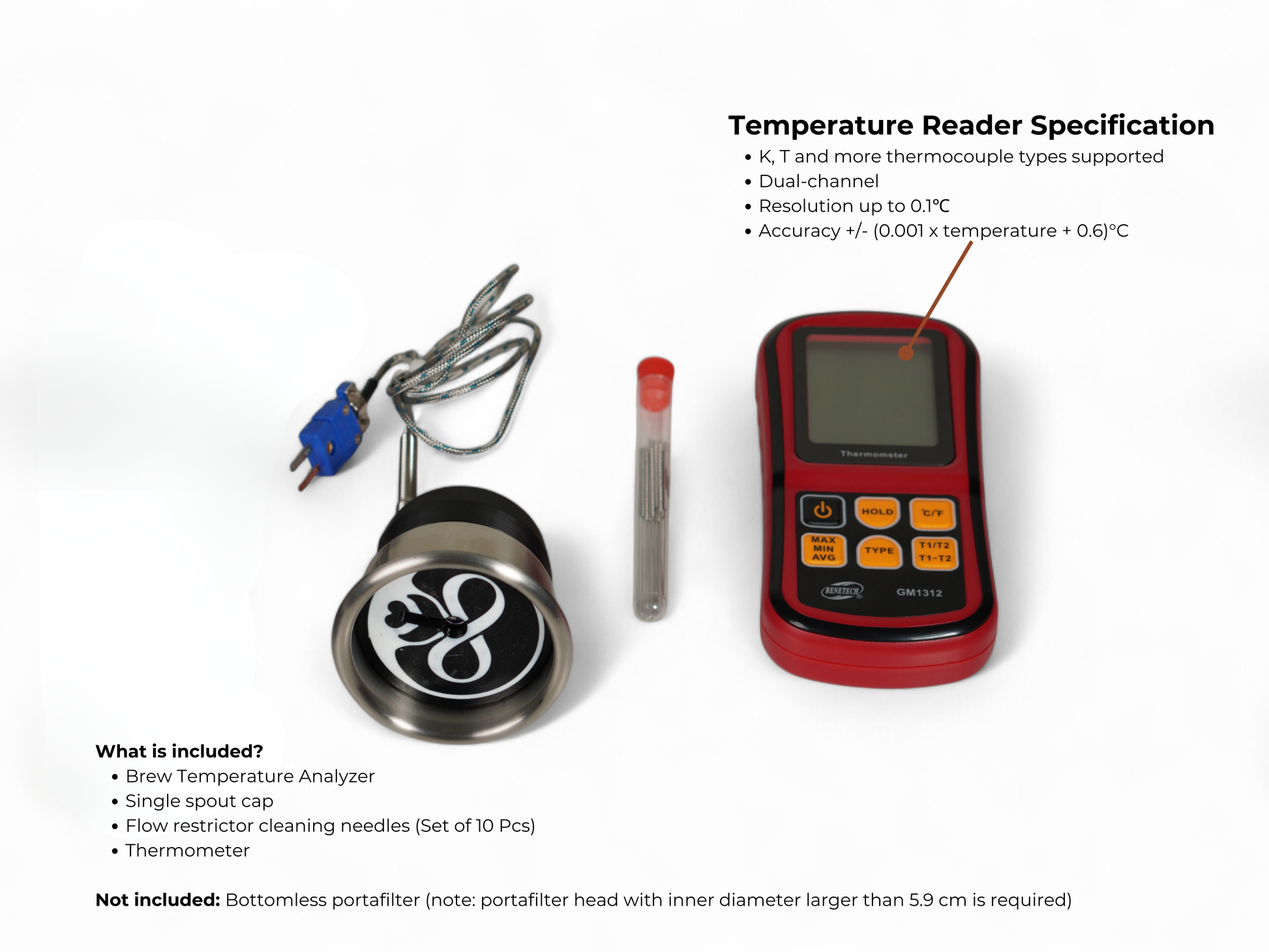

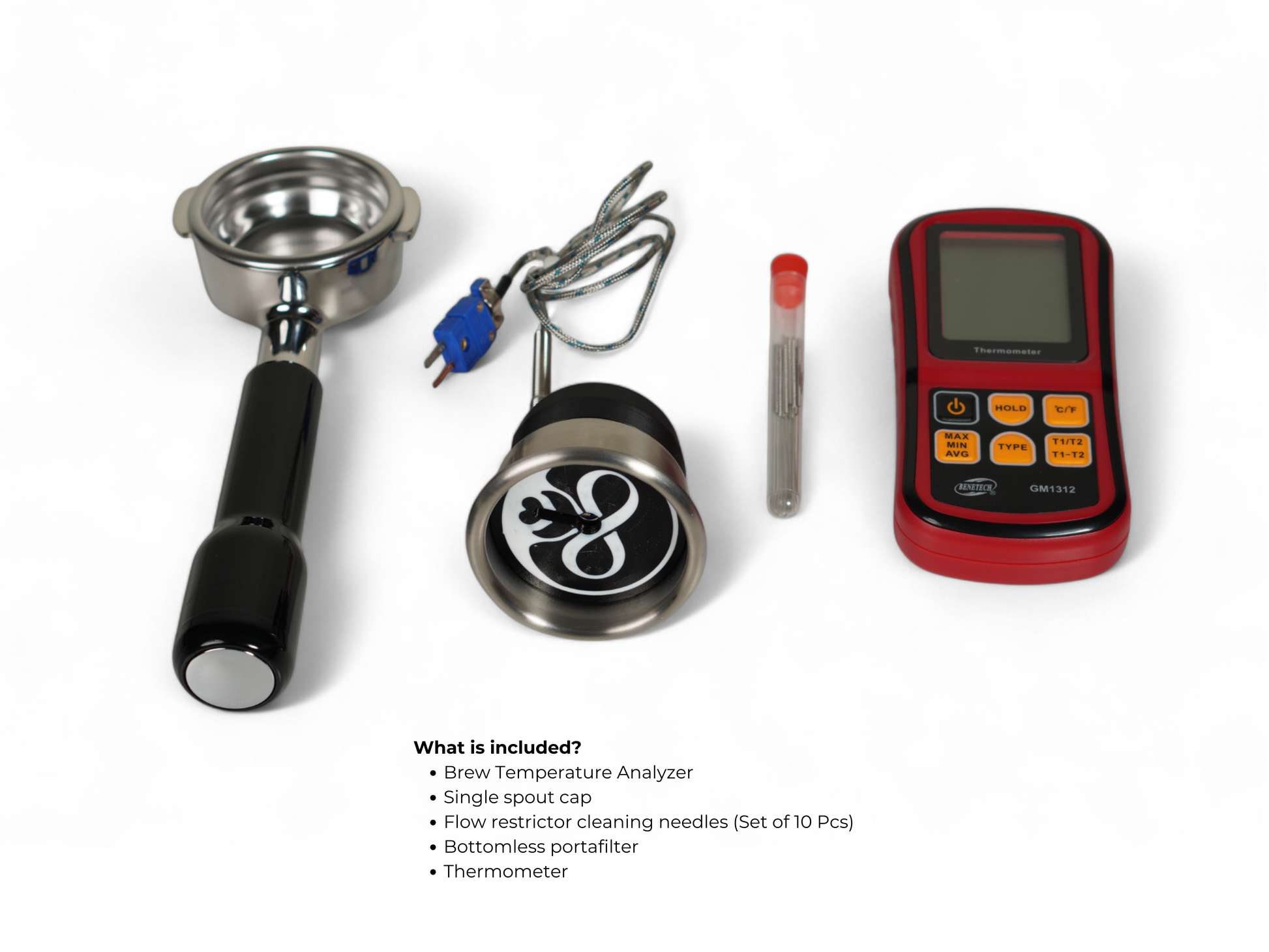

Basic Thermometer

• K, T, and more thermocouple types supported (dual-channel)
• Resolution up to 0.1℃
• Accuracy +/- (0.001 x temperature + 0.6)°C
• Power supply: 3 x AAA battery (not included in shipment)

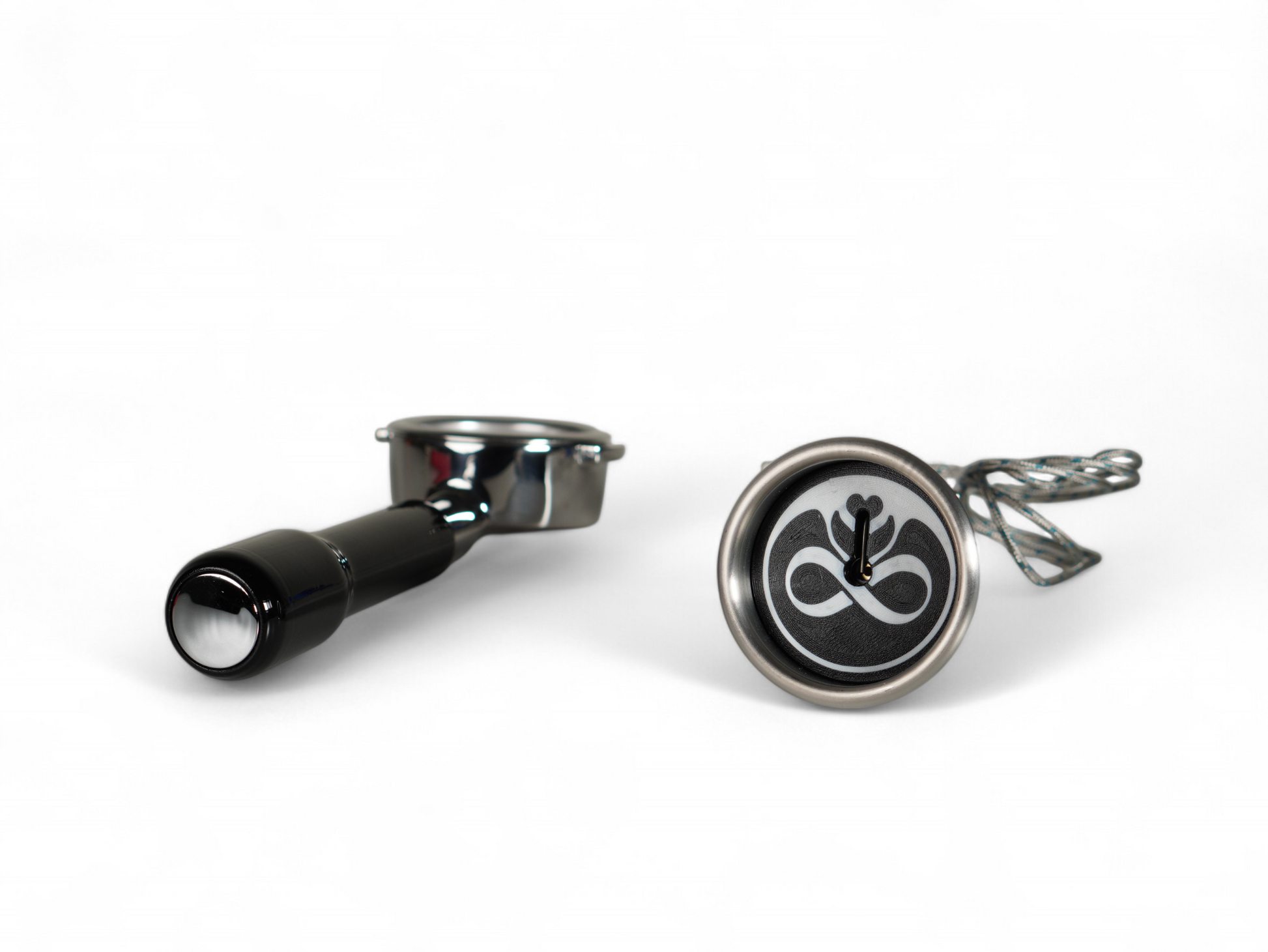

Bottomless Portafilters

• Size: suitable 58mm filter baskets
• Stainless steel head with plastic handle
• 1 x Filter basket (22 grams) included

Why should you use the Brew Temperature Analyzer?

• Determine the true brewing temperature and correct the machine offset value
• Measure the machine heat-up time until stable operating temperature is achieved
• Analyze the shot-to-shot temperature stability of your coffee machine

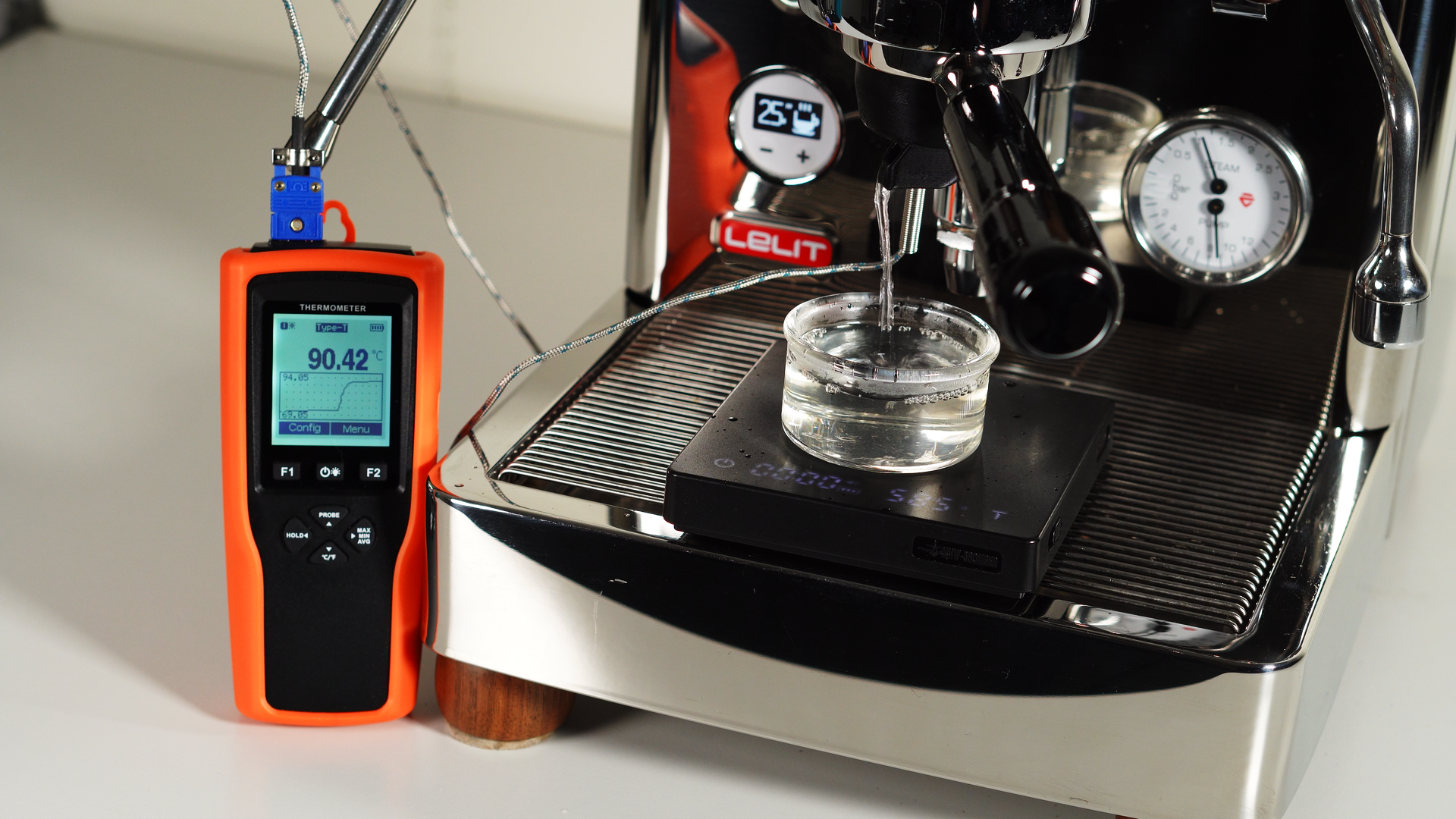

How to perform the temperature offset measurement?

To achieve optimal measurement accuracy and repeatability, it is recommended to perform the tests based on a temperature measurement protocol. Two valuable resources for espresso machines are:

• Competition Espresso Machines: Specifications & Test Methods (2021 Edition) by the Specialty Coffee Association (SCA)
• Espressomaschinen-Testprotokoll (in German) by Kaffeemacher

How to calibrate your temperature sensor & reader?

It is recommended to calibrate your sensor and reader setup before your first temperature test to guarantee the best measurement accuracy. A video tutorial on how to calibrate your device will be available soon.

You have a different coffee machine?

If you need a specific adaptation for the Brew Temperature Analyzer, don't hesitate to reach out to us. We frequently do polls on our Instagram to help us decide which product option to develop next.
